Inicio /Productos/Sonda de transductor de ultrasonido/OB/GYN USB Convex Ultrasound Probe for Laptop and Smartphone 3d USB Ultrasound Probe Pocket Probe

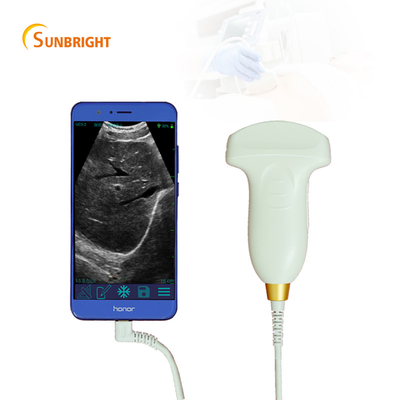

OB/GYN USB Convex Ultrasound Probe for Laptop and Smartphone 3d USB Ultrasound Probe Pocket Probe

1.0 Units
MOQ
OB/GYN USB Convex Ultrasound Probe for Laptop and Smartphone 3d USB Ultrasound Probe Pocket Probe
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: SUN-P1
Power Source: Electricity
Warranty: 2 years
After-sale Service: Online technical support
Material: Metal, Plastic
Shelf Life: 2 years
Quality Certification: ce
Instrument classification: Class II
Safety standard: None
Product name: USB convex ultrasound probe
cheap: yes
Probe Type: Convex
Frequency: 3.5MHz(2.5-4.5MHz)
Imaging mode: B-Mode, PW-Mode
scanning depth: ≤240mm
Body Mark: 140
Gray scale level: 256
Ultrasound Software: YES
Application: OB/GYN, Urology, Abdomen, Emergency, and ICU
Información básica
Certificación: ce
Model Number: SUN-P1
Pago y Envío Términos
Packaging Details: Sea worthy packing, air worthy packing for USB convex ultrasound probe
Supply Ability: 2000 Unit/Units per Month USB convex ultrasound probe
Descripción de producto
Product Description
USB convex ultrasound probe for laptop and smartphone 3d usb ultrasound probe pocket probe
Specification
System Description
Sun-P1 is an ergonomically designed portable and ease-of-use pocket ultrasound system for multi-specialty uses, such as adults,pregnant women, pediatric patients and neonates. It is intended for use in peripheral vascular, anesthesia, small parts, MSK,athletic medical, abdominal, gynecology, obstetrics, urological, ICU.
Dimensions and Weight
Width: < 135mm
Depth: < 80mm
Height: < 30mm
Weight: < 150g

Operating Environment
Ambient temperature: 10~30 deg
Relative humidity: <80%
Atmospheric pressure: 700 hPa~1060 hPa

Storage & Transportation Environment
Ambient temperature: -20~55 deg
Relative humidity: <95%
Atmospheric pressure: 700 hPa~1060 hPa

Transducer Types & Scanning Methods
Transducer Types
1.Linear array transducer
2.Convex array transducer
3.Phased array transducer(coming soon)

Scanning Methods
1.Electronic linear
2.Electronic convex
3.Electronic sector

System software application
Vascular, Small parts, Nerve, Abdomen, Obstetrics, Gynecology, Urology

Measure
Distance
Area
Volume
Ratio (distance or area)
OB measure package
Body mark

Annotations
Text
Arrow
Ellipse
Rectangle
Technical Parameter
Power consumption:1W
Imaging mode: B-Mode, PW-Mode (probe dependent)
Frequency: Convex(3-5Mhz)
Probe element: 80 and 128 for selection
Gray scale level: 256
Dynamic range:＞120dB
Maximum frame rate: 20 FPS (probe dependent)
Cine review: 100 frames
System scanning depth:
linear probe: ≤70mm
mage Save: JPG, DICOM
Image Save: JPG, DICOM
Port: micro USB3.0/2.0
Compatible Device:
Android System:
Huawei P10, Honor 9, Mate 9…
Samsung S8, S9, Note8…
LG:V20, G6…

Windows:
OS≥windows 8.1, CPU≥Intel CoreM
Details Images
Recommend Products
Please Click Here To Contact Us For Latest Discounts!
Packing & Delivery
1. Package: double carton boxes
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
